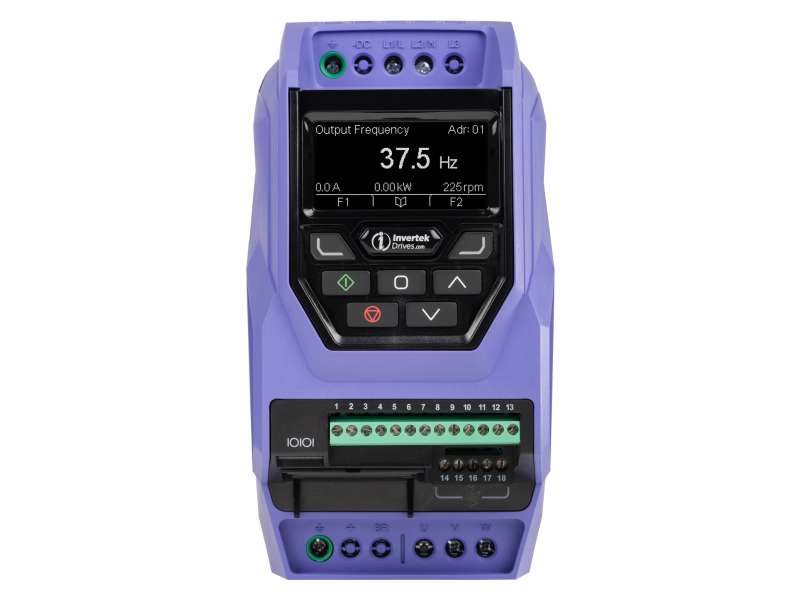

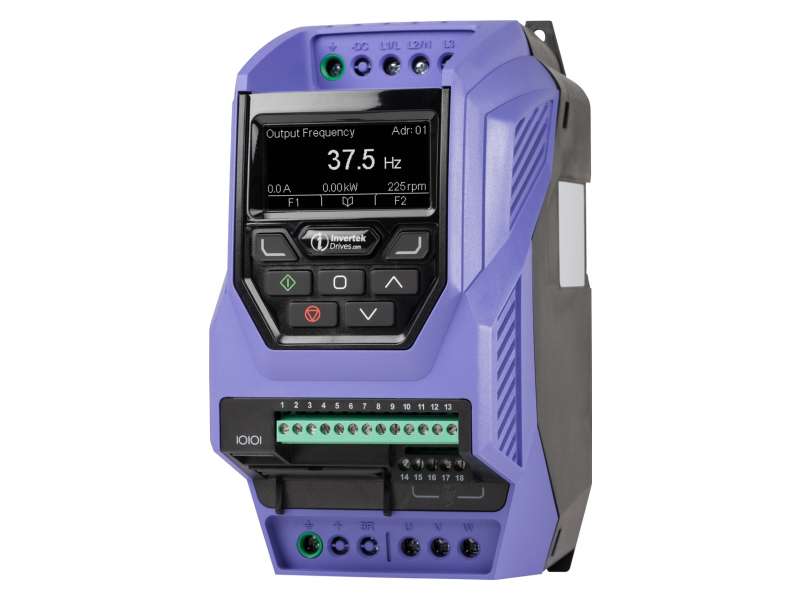

INVERTEK DRIVES Optidrive P2, 4kW, IP20 ; ODP-2-24400-3KF42-MN
Invertek Optidrive P2, ODP-2-24400-3KF42-MN , 400V 3 phase input, 400V 3 phase output, 4kW, 9.5 A output current IP20 inverter. DIN rail mountable High performance...
VAT-exclusive price: 522,90 € |
VAT-inclusive price: 617,02 € |
Invertek Optidrive P2, ODP-2-24400-3KF42-MN, 400V 3 phase input, 400V 3 phase output, 4kW, 9.5 A output current
IP20 inverter.
DIN rail mountable
High performance open loop vector or V/f control.PID control
PLC functions
Internal EMC filter and brake transistor.
Communication options : Profibus, Profinet,Ethernet, DeviceNet
Optional Encoder Interface
Power kW 4
Power HP 5.5
Input Voltage 380-480V
Output Voltage 0 to input V
Input Phases 3
Output Phases 3
Output Current 9.5Amps
Input Current 11.2Amps
Encl Rating IP20
Width 112mm
Height 221mm
Depth 185mm
Frame Size 2
Overload 200%
Duty Heavy
Dynamic Braking Yes
Weight 1.8000
Control Type V/f and Open loop vector
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 50 deg C
Digital Inputs 5
Digital Outputs 2
Analogue I/Ps 2
Analogue O/Ps 2
Output relay(s) 2 status relays
Serial Comms Modbus, CANopen
Approvals UL. cUL, C- Tick, Gost R, ROHS
-
GB Optidrive P2 User Guide NEW
