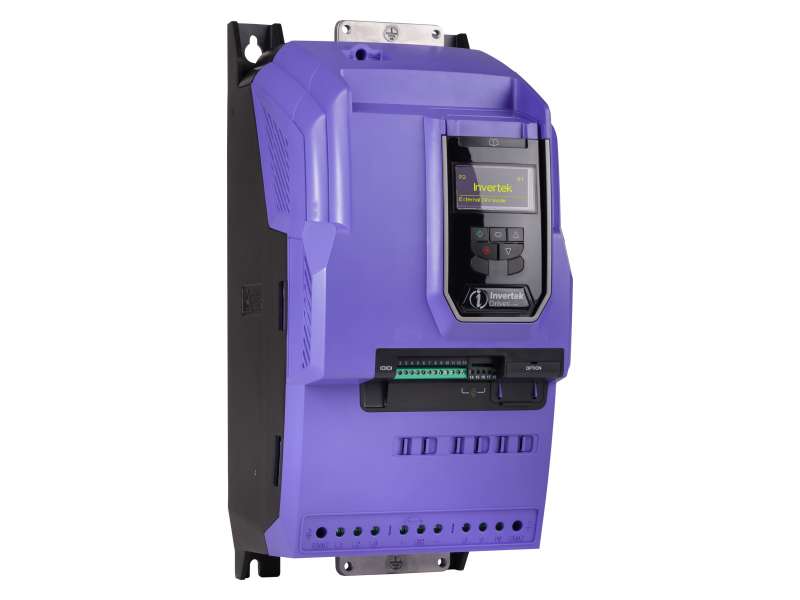

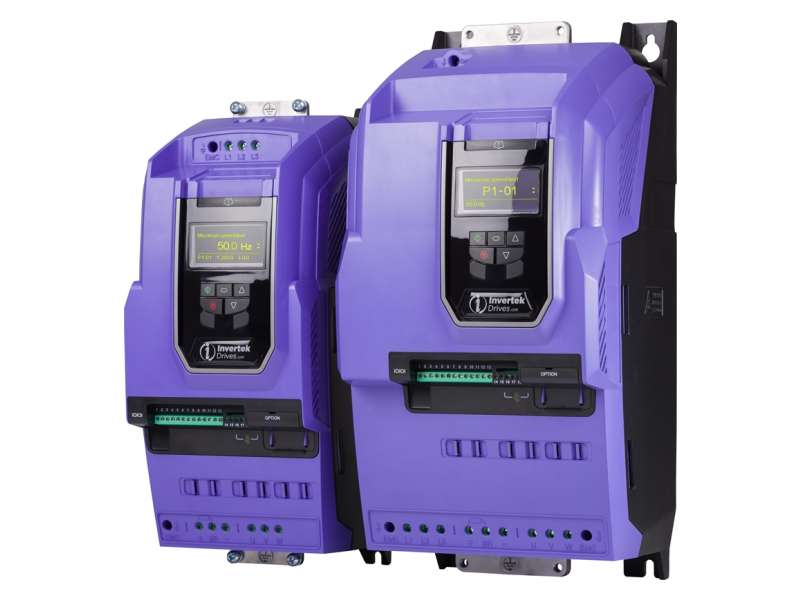

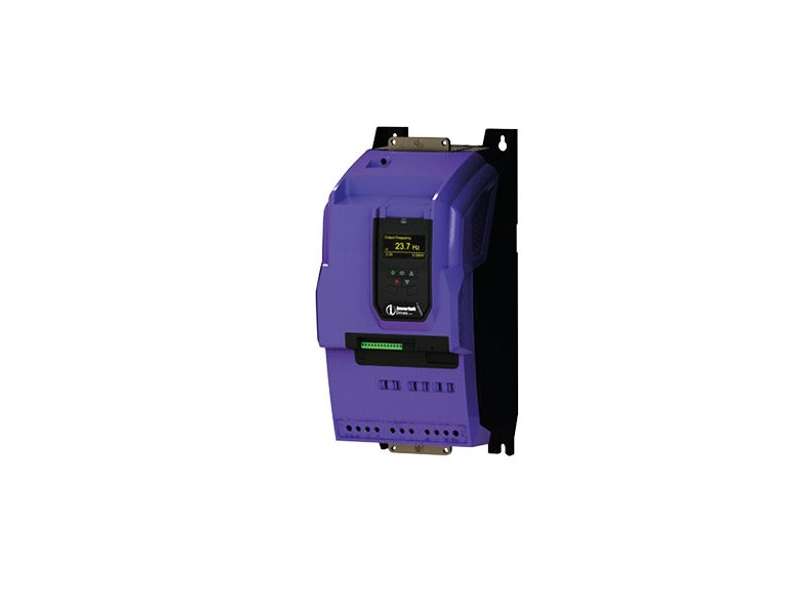

INVERTEK DRIVES Optidrive P2, 37kW , IP20 ; ODP-2-54370-3KF42-MN
Invertek Optidrive P2, ODP-2-54370-3KF42-MN ,400V 3 phase input, 400V 3 phase output, 37kW, 72 A output current IP20 inverter. TFT or OLED text display High performance...
VAT-exclusive price: 2.116,80 € |
VAT-inclusive price: 2.540,16 € |
Invertek Optidrive P2,ODP-2-54370-3KF42-MN ,400V 3 phase input, 400V 3 phase output, 37kW, 72 A output current
IP20 inverter.
PID control
PLC functions
Internal EMC filter and brake transistor.
Communication options : Profibus, Profinet,Ethernet, DeviceNet
Optional Encoder Interface
IP20 inverter.
TFT or OLED text display
High performance open loop vector or V/f control.PID control
PLC functions
Internal EMC filter and brake transistor.
Communication options : Profibus, Profinet,Ethernet, DeviceNet
Optional Encoder Interface
Power kW 37kW
Power HP 50HP
Input Voltage 380-480V
Output Voltage 0 to input V
Input Phases 3
Output Phases 3
Output Current 72Amps
Input Current 76.4Amps
Encl Rating IP20
Width 222mm
Height 486mm
Depth 260mm
Frame Size 5
Overload 200%
Duty Heavy
Dynamic Braking Yes
Weight 18.2kg
Control Type V/f and Open loop vector
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 50 deg C
Digital Inputs 5
Digital Outputs 2
Analogue I/Ps 2
Analogue O/Ps 2
Output relay(s) 2 status relays
Serial Comms Modbus, CANopen
Approvals UL. cUL, C- Tick, Gost R, ROHS
-
GB Optidrive P2 User Guide NEW
