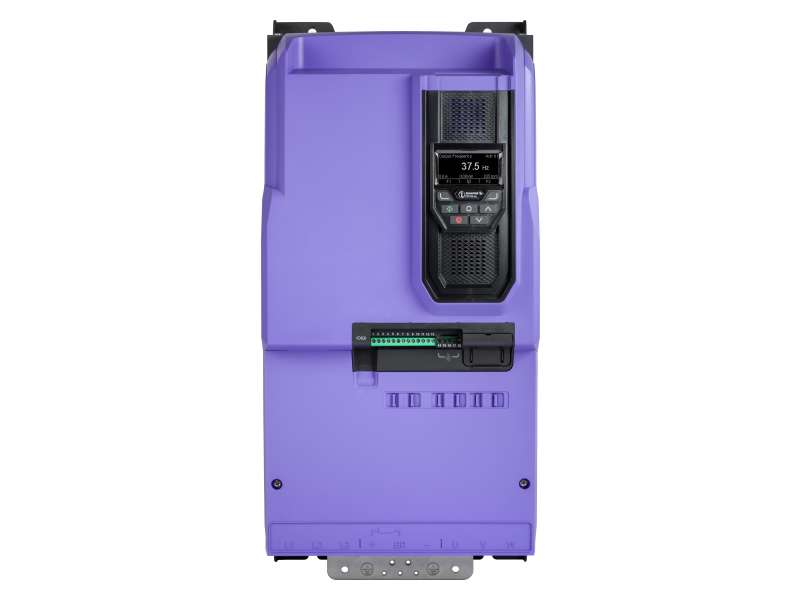

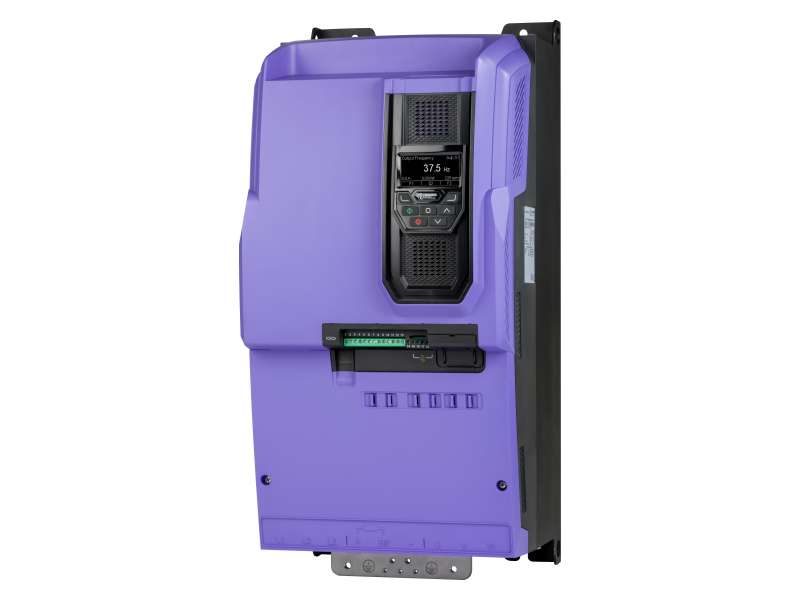

INVERTEK DRIVES Optidrive P2, 45kW, IP20 ; ODP-2-64045-3KF42-MN
Invertek Optidrive P2, , ODP-2-64045-3KF42-MN , 400V 3 phase input, 400V 3 phase output, 45kW, 90A, IP20 TFT text display. High performance open loop vector or V/f...
VAT-exclusive price: 2.629,20 € |
VAT-inclusive price: 3.155,04 € |
Invertek Optidrive P2, , ODP-2-64045-3KF42-MN , 400V 3 phase input, 400V 3 phase output, 45kW, 90A, IP20
TFT text display.
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Safe Torque Off
TFT text display.
High performance open loop vector or V/f control.
Internal EMC filter and brake transistor.
Safe Torque Off
| Power (kW) | 45 |
| Power (HP) | 60 |
| Input Voltage | 380-480V |
| Output Voltage | 0-input Voltage |
| Input Phases | 3 |
| Output Current | 90A |
| Input Current | 92.2A |
| Enclosure rating | IP20 |
| Width | 286mm |
| Height | 612mm |
| Depth | 320mm |
| Frame Size | 6A |
| Overload | 200% |
| Duty | Heavy |
| Dynamic Braking | Yes |
| Weight | 32kg |
| Control Type | Open or closed loop vector or V/f |
| Input Frequency | 48-62Hz |
| Output Frequency | 0-500Hz |
| Max Temperature | 50 ͦC |
| Digital Inputs | 5 |
| Digital Outputs | 2 |
| Analogue Inputs/Ps | 2 |
| Analogue Outputs/Ps | 2 |
| Output relay(s) | 2 |
| Serial Comms | Modbus, CANopen |
| Approvals | UL. cUL, C- Tick, Gost R, ROHS |
-
GB Optidrive P2 User Guide NEW
