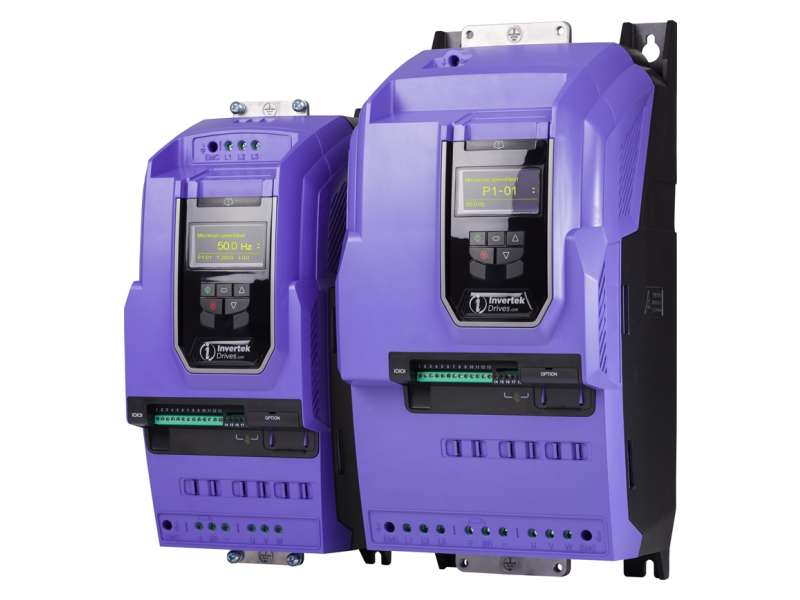

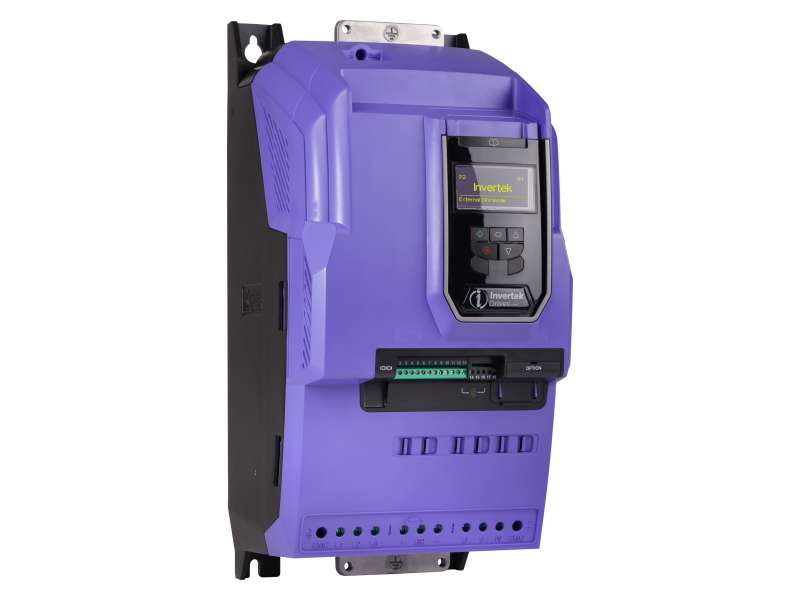

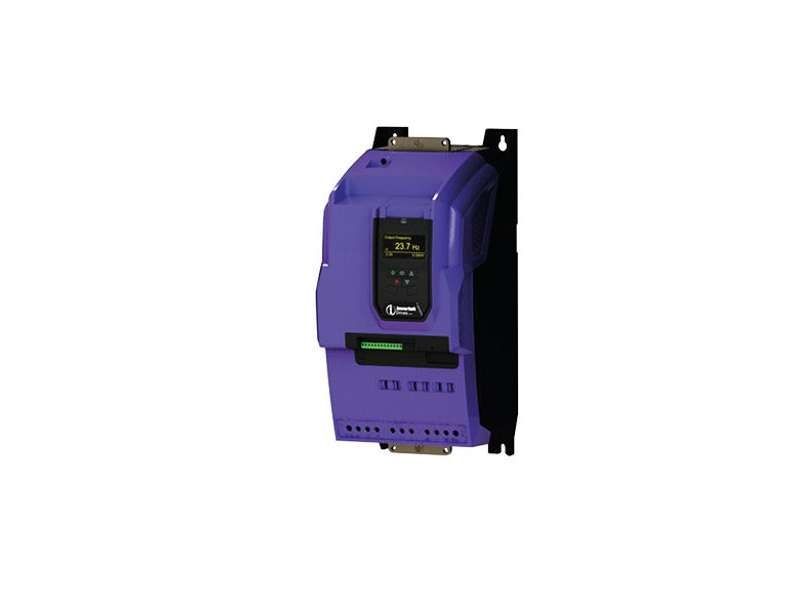

INVERTEK DRIVES Optidrive P2, 30kW ,IP20 ;ODP-2-54300-3KF42-MN
Invertek Optidrive P2, ODP-2-54300-3KF42-MN , 400V 3 phase input, 400V 3 phase output, 30kW, 61 A output current IP20 inverter. TFT or OLED text display High performance...
VAT-exclusive price: 1.906,80 € |
VAT-inclusive price: 2.288,16 € |
Invertek Optidrive P2, ODP-2-54300-3KF42-MN, 400V 3 phase input, 400V 3 phase output, 30kW, 61 A output current
IP20 inverter.
PID control
PLC functions
Internal EMC filter and brake transistor.
Communication options : Profibus, Profinet,Ethernet, DeviceNet
Optional Encoder Interface
IP20 inverter.
TFT or OLED text display
High performance open loop vector or V/f control.PID control
PLC functions
Internal EMC filter and brake transistor.
Communication options : Profibus, Profinet,Ethernet, DeviceNet
Optional Encoder Interface
Power kW 30kW
Power HP 40HP
Input Voltage 380-480V
Output Voltage 0 to input V
Input Phases 3
Output Phases 3
Output Current 61Amps
Input Current 63.8Amps
Encl Rating IP20
Width 222mm
Height 486mm
Depth 260mm
Frame Size 5
Overload 200%
Duty Heavy
Dynamic Braking Yes
Weight 18.2kg
Control Type V/f and Open loop vector
Input Freq 48-62Hz
Output Freq 0-500Hz
Max Temp 50 deg C
Digital Inputs 5
Digital Outputs 2
Analogue I/Ps 2
Analogue O/Ps 2
Output relay(s) 2 status relays
Serial Comms Modbus, CANopen
Approvals UL. cUL, C- Tick, Gost R, ROHS
-
GB Optidrive P2 User Guide NEW
