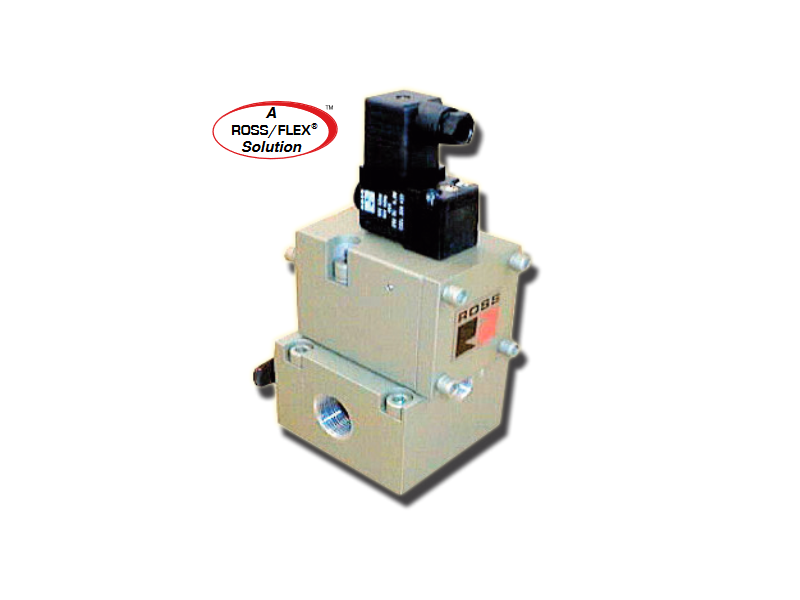

ROSS EUROPA Final blow 3/2 Directional Control Valve ; D2173A5950
FINAL BLOW, SETTLE BLOW , FINISH COOLING , BLOW OFF High-speed poppet construction Constant repeatability Non friction seat seals Non-lube Specialised low-wear body-coating...
Price on request
FINAL BLOW, SETTLE BLOW , FINISH COOLING , BLOW OFF
High-speed poppet construction
Non-lube
Specialised low-wear body-coating
Quick exhaust
Pressure booster options
Locking, non-locking manual overrides
Special base options
High-speed poppet construction
Constant repeatability
Non friction seat seals
Non-lubeSpecialised low-wear body-coating
Quick exhaust
Pressure booster options
Locking, non-locking manual overrides
Special base options
STANDARD SPECIFICATIONS
Solenoids: Standard voltages 200-240 volts 50/60 Hz; 100-120 volts 50/60 Hz; 110 volts d.c. 24 volts d.c.
Power Consumption: 30 VA inrush, 16 VA holding on 50 or 60 Hz; 11 watts on d.c.
Flow Medium: Filtered air
Ambient Temperature: -17° to 80° C (0° to 175° F).Solenoids: Standard voltages 200-240 volts 50/60 Hz; 100-120 volts 50/60 Hz; 110 volts d.c. 24 volts d.c.
Power Consumption: 30 VA inrush, 16 VA holding on 50 or 60 Hz; 11 watts on d.c.
Flow Medium: Filtered air
Media Temperature: -17° to 150° C (0° to 300° F).
Inlet Pressure: 2 to 10 bar (30 to 150 psig). Consult ROSS for lower inlet pressure
-
FinalBlow
