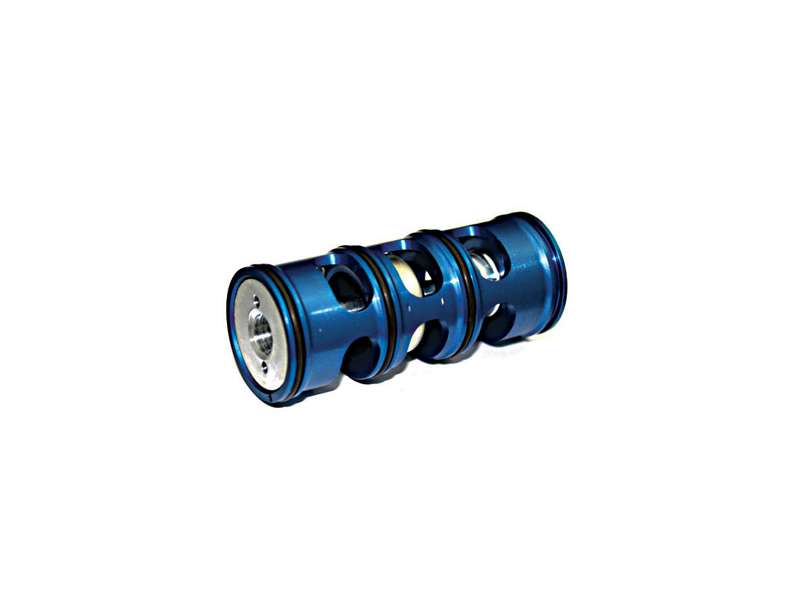

ROSS EUROPA Cartridge Blue ; D366H97
Optimized flow with nominal Size 14 mm Pistons with O-Ring and TEFLON guides for reduced friction reduced housing wear constant response time Optimized guidance...
Price on request
-
Optimized flow with nominal Size 14 mm -
Pistons with O-Ring and TEFLON guides for
- reduced friction
- reduced housing wear
- constant response time
-
Optimized guidance of moving parts by spacing of pistons
-
Optimized poppet alignment to housing seat as design feature
-
Robust stainless steel poppet with curled O-Ring
-
2-piston design integrates pressure booster function (see graph below) -
Integrated return spring does not interfere with inlet or exhaust flow
DESIGN
Poppet valve: Viton-seals on metal seat.
Body: Aluminum alloy, anodized Piston: Aluminum alloy Poppet: Stainless steel ACTUATION
Maintained pressure signal to pilot, spring returned. Pilot pressure required, see graph below (min. 1 bar recommended) OPERATION
Signal exhausted: 1 open to 2, 3 exhausted.
Signal present: 1 closed, 2 exhausted via 3.
Operating pressure range: 0 - 10 bar.
CHARACTERISTICS
Ambient/Media temperature: 4°C to 105°C
Flow medium: compressed air, filtered
Poppet valve: Viton-seals on metal seat.
Body: Aluminum alloy, anodized Piston: Aluminum alloy Poppet: Stainless steel ACTUATION
Maintained pressure signal to pilot, spring returned. Pilot pressure required, see graph below (min. 1 bar recommended) OPERATION
Signal exhausted: 1 open to 2, 3 exhausted.
Signal present: 1 closed, 2 exhausted via 3.
Operating pressure range: 0 - 10 bar.
CHARACTERISTICS
Ambient/Media temperature: 4°C to 105°C
Flow medium: compressed air, filtered
-
D366H97 Cartridge blue
