Kuebler Draw wire enkoder za merenje dužine do 6m C105 ; D8.1XXX.XXXX.XXXX
Draw-wire encoder C105 The draw-wire encoder C105 can be combined with all encoders with 58 mm synchro flange and 6 mm shaft. Flexible and simple - Encoder replacement...
Price on request

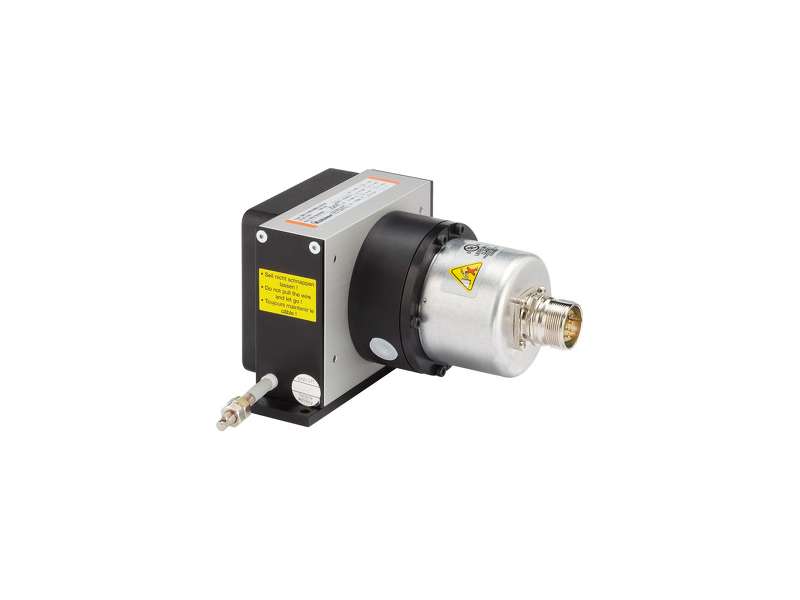

Draw-wire encoder C105
The draw-wire encoder C105 can be combined with all encoders with 58 mm synchro flange and 6 mm shaft.Flexible and simple
- Encoder replacement by user possible
- Measuring lengths 2800 mm or 6000 mm
Simple mounting
| Mechanical | |
|---|---|
| Measuring system | Draw-wire encoders |
| Measuring length |
2,8 m 6 m |
| Speed | 3 m/s |
| Dimension | 105 mm x 85 mm x 133 mm |
| Connection types |
M23 connector axial M12 connector axial MIL connector |
| Working temperature | -20 °C ... +80 °C |
| Protection level | IP65 |
| Weight | 700 g |
| Electrical | |
|---|---|
| max. linearity | ±0,1 % |
| Interfaces |
Analog 0–10 V EtherNet/IP CANopen EtherCAT Push-pull TTL / RS422 SAE J1939 SinCos PROFIBUS DP PROFINET IO SSI, binary BiSS |
| Supply voltage |
10...30 V DC 15...30 V DC |
-
C105 en
