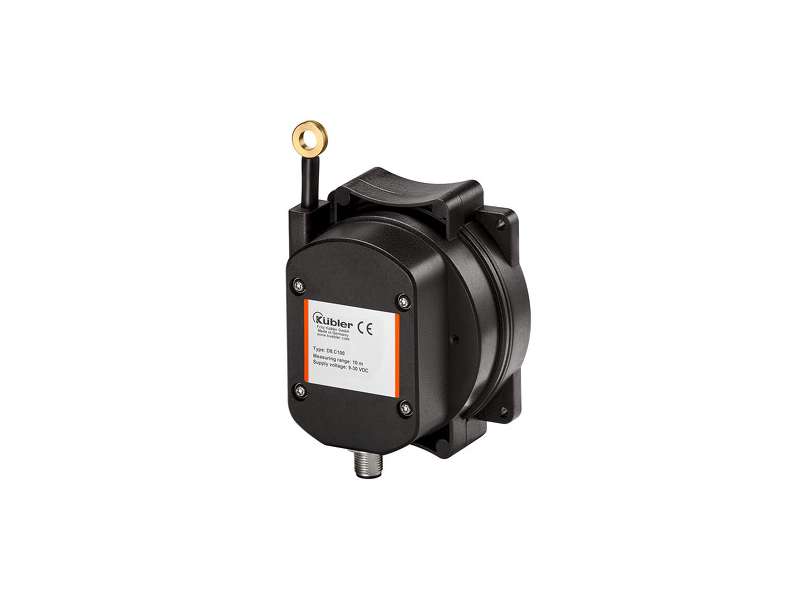

Kuebler Draw-wire enkoder za merenje dužine do 4m sa integrisanim inklinometrom C100 ; D8.C100.XXXX.XXXX.XXX0
Robust design and high IP67 protection level The C100 draw-wire encoder is particularly reliable due to its robust design and the high IP67 protection and ensures...
Price on request
Robust design and high IP67 protection level
The C100 draw-wire encoder is particularly reliable due to its robust design and the high IP67 protection and ensures exact length measurement. Particularly noteworthy is its simple and optimal integration into the application. From an integrated inclinometer to relay output, many additional options are available. This draw-wire encoder offers the possibility of combining a redundant system in a very compact housing in order to increase system availability.
Properties
Benefits
- Measuring range up to 5 m.

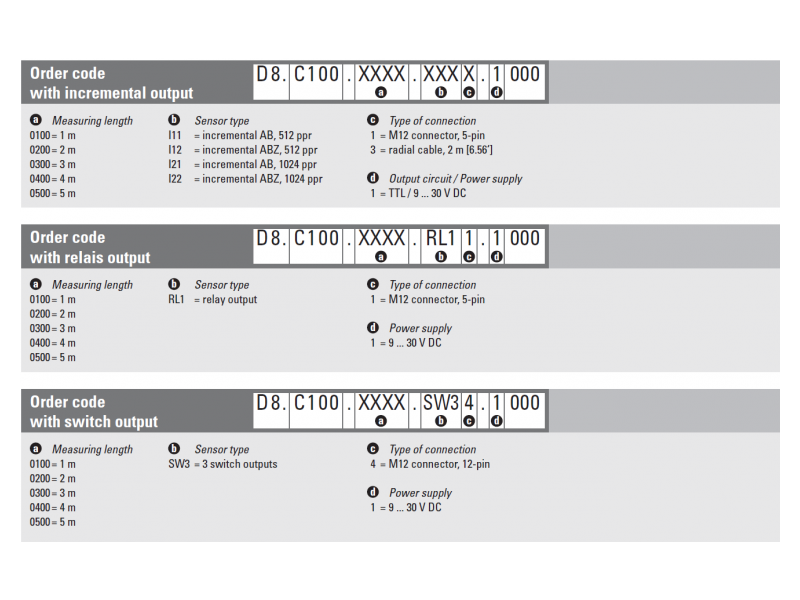

- Different sensor types (analog, incremental, CANopen, relay output, switching output).
- Linearity up to ± 0.1 % of the measuring range
- High IP67 protection and wide temperature range of -40°C to +85°C.
- Redundant sensors.

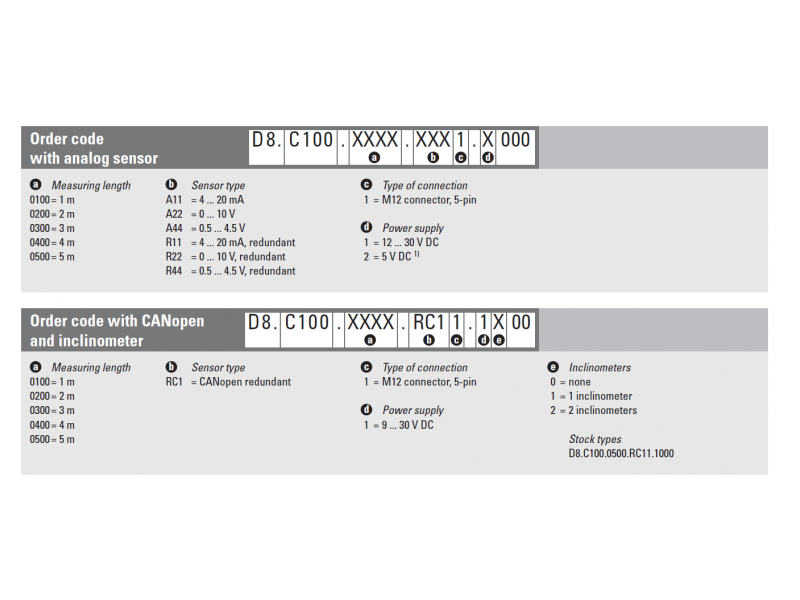

- Integrated inclinometer.
Benefits
- The right measuring length for every application.
- Easy selection and quick installation.
- High accuracy at economical prices.
- Reliable and long-lasting outdoor use.
- For even higher system availability.
- Cost, space and installation savings.
| Mechanical | |
|---|---|
| Measuring system | Draw-wire encoders |
| Measuring length |
1 m 2 m 3 m 4 m 5 m |
| Speed | 1 m/s |
| Dimension | 108 mm x 98 mm x 68,4 mm |
| Connection types |
M12 connector axial up to 2m cable radial |
| Working temperature | -40 °C ... +85 °C |
| Protection level | IP67 |
| Weight | 500 g |
| Electrical | |
|---|---|
| max. linearity | ±0,5 % |
| Interfaces |
Analog 0.5–4.5 V CANopen |
| Supply voltage |
5 V DC 9...30 V DC 10...30 V DC |
-
C100 en
