Kuebler Draw wire enkoder za merenje dužine do 10m D120 ; D8.D120.XXXX.XXXX
Draw-wire encoder D120 Thanks to their extremely robust construction, high IP69k protection, and wide temperature range, then ewn draw-wire encoders are particularly...
Price on request

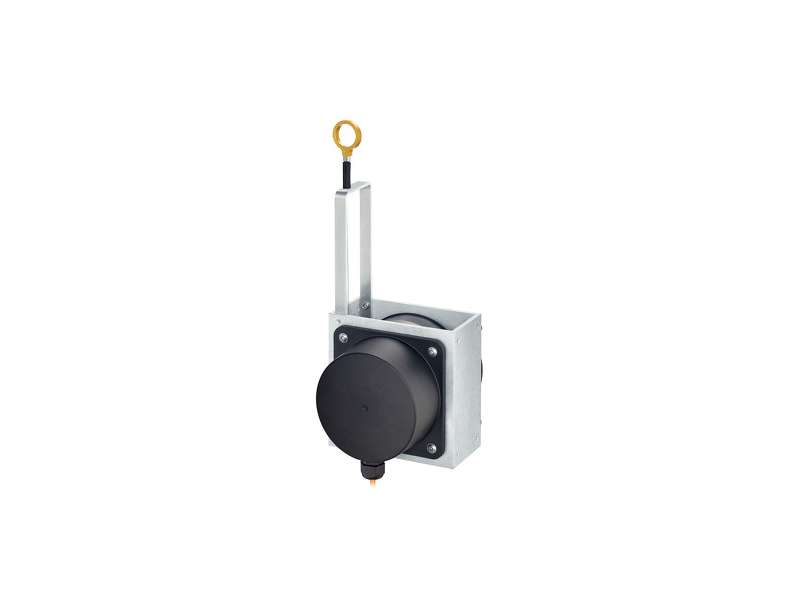

Draw-wire encoder D120
Thanks to their extremely robust construction, high IP69k protection, and wide temperature range, then ewn draw-wire encoders are particularly reliable and durable. Their flexibility and adaptability is reflected in the wide selection of housing and cable types, wide measuring range. and variety of interfaces. The possibility of redundancy should be emphasized here.
Robust
Versatile
- Protection up to IP69k, wide temperature range -40 to +85 °C
- The titanium anodized aluminum housing and the stainless steel cables enable use even under extreme conditions
- 1.5 mm stainless steel wire - ideal for outdoor applications
Versatile
- Measuring length up to 10 m
- Redundant outputs (mA, V, R, CANopen)
- The right measuring wire and the right wire fastening for every application
- Linearity up to ± 0.1% of the measuring range
- Different designs: open, closed housing, or housing with perf sheet cover
| Mechanical | |
|---|---|
| Measuring system | Draw-wire encoders |
| Measuring length |
3 m 4 m 5 m 6 m 7 m 8 m 9 m 10 m |
| Speed | 3 m/s |
| Dimension | 120 mm x 120 mm x 133 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP67 IP69k |
| Weight | 1,60 kg |
| Electrical | |
|---|---|
| max. linearity | ±0,1 % |
| Interfaces |
Analog 0–10 V CANopen |
| Supply voltage | 12...30 V DC |
-
D120 en
