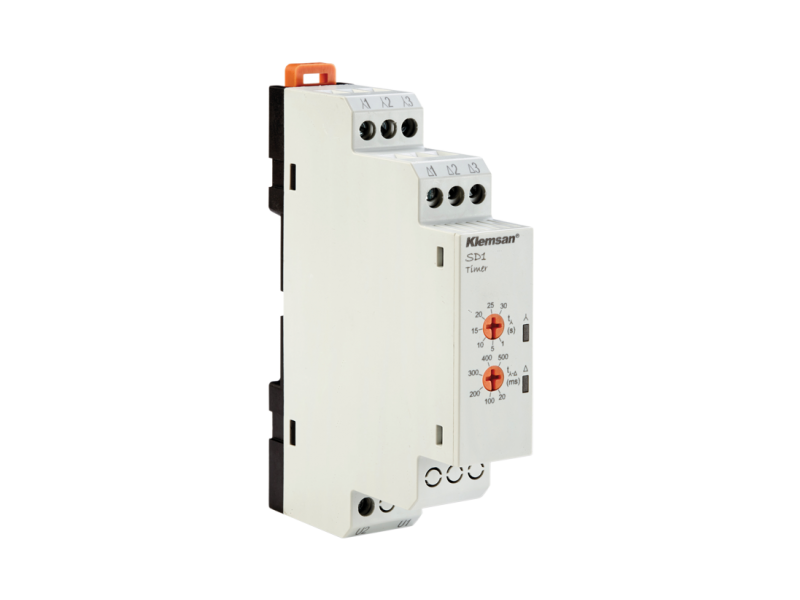

Klemsan Star delta timer SD1 ; 270358
Star-delta timer. Two relay outputs, maximum switching current 5A. More about product in techincal specification and documentation....
VAT-exclusive price: 29,47 € |
VAT-inclusive price: 34,78 € |
Star-delta timer. Two relay outputs, maximum switching current 5A.
More about product in techincal specification and documentation.
More about product in techincal specification and documentation.
| General | |||
| Order Number | 270 358 | ||
| Casing Width (mm) | 17,5 | ||
| Connections | Screw Terminal | ||
| Functions | SD1 | ||
| Type of Output | Relay | ||
| Adjustment of Timing-1 & Timing-2 | Independent | ||
| Lux Adjustment Rate | --- | ||
| Sensitivity Adjusement Rate | --- | ||
| Supply Frequency | 35-70 Hz | ||
| Trigger Input Voltage | --- | ||
| Recovery Time | Maks. 100ms | ||
| Protection Class | IP20 | ||
| Weight (g) | 70 | ||
| Mounting Type | Panel & Rail | ||

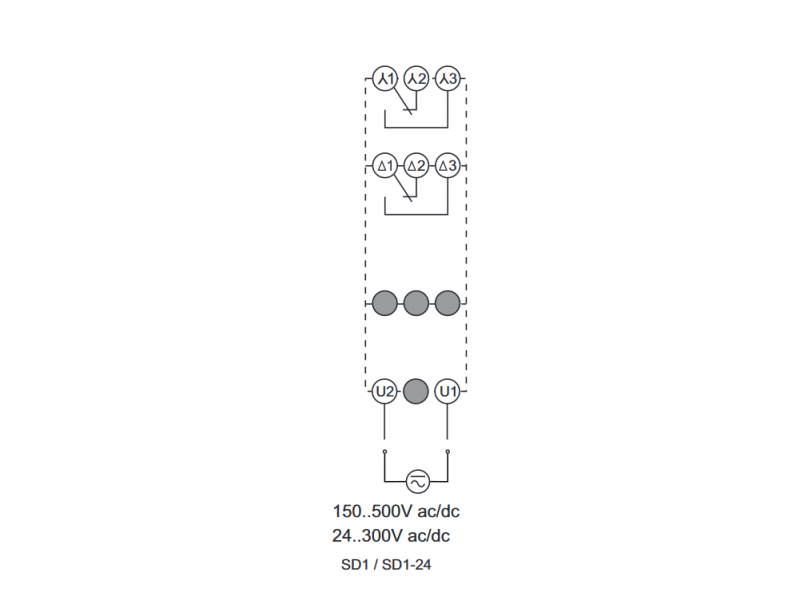

| Schematics | --- | ||

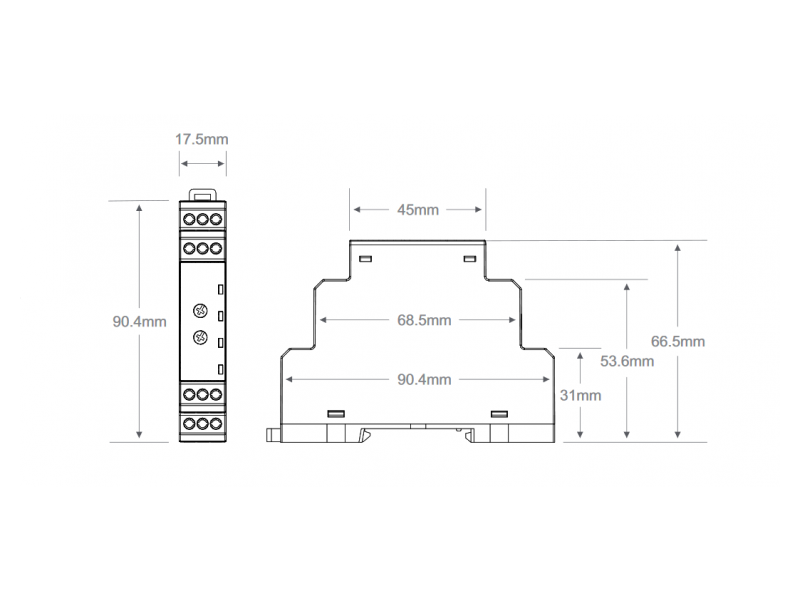

| Dimensions | --- | ||
| Auxilary Contacts | Type | 2 x C/O | |
| Max. Ratings - AC (for NO side) | 5A/250V; 1250VA | ||
| Max. Ratings - DC (for NO side) | 5A/30VDC; 150W | ||
| Mechanical Lifetime | ≥ 107 operations | ||
| Electrical Lifetime Operations (for NO side) | 5x104(5A@250VAC) 1x 105 (5A@30VDC) | ||
| Time Range | Timing-1 | 1s => 30s | |
| Timing-2 | 20ms => 500ms | ||
| Supply Voltage | DC | --- | |
| AC | 150-500VAC | ||
| Ambient Conditions | Operating Temperature | -20 to + 60°C | |
| Storing Temperature | -40°C +75°C | ||
| Relative Humidity (No Condensation) | Maks. 95% | ||
| Power Consumption | DC | <1.25W | |
| AC | <2.5VA | ||
| EMC-EMI | 55011/A1, 61000-4-2, 61000-4-3/A1, 61000-4-4, 61000-4-5, 61000-4-6, 61000-4-8, 61000-4-11 | ✔ | |
| Accessories | Liquid Level Electrode | Definition | --- |
| Order Number | --- | ||
| Packing Units | 1 | ||
-
T SERIES LR SD XS PH EN 16022017
