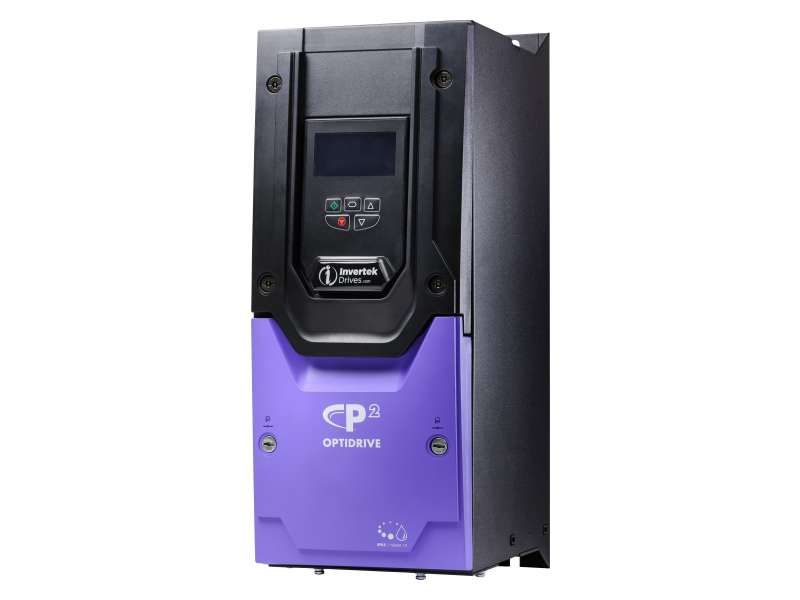

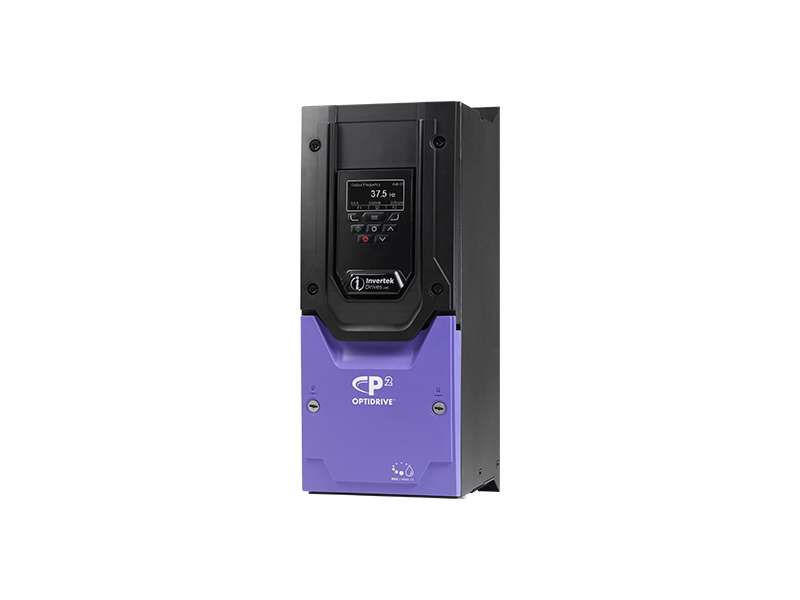

Name: INVERTEK DRIVES Optidrive P2, 15kW , IP55 ; ODP-2-44150-3KF4N-MN
Brand: INVERTEK DRIVES
SKU: ODP-2-44150-3KF4N-MN
Price: 1694.95 RSD
Availability: OutOfStock

INVERTEK DRIVES Optidrive P2, 15kW , IP55 ; ODP-2-44150-3KF4N-MN

INVERTEK DRIVES Optidrive P2, 15kW , IP55 ; ODP-2-44150-3KF4N-MN

Invertek Optidrive P2, ODP-2-44150-3KF4N-TN , 400V 3 phase input, 400V 3 phase output, 15kW, 30A, IP55 Non-switched inverter. TFT display. High performance open...

Brand: INVERTEK DRIVES
Product Code: ODP-2-44150-3KF4N-MN
Availability: Check availability

VAT-exclusive price: 1.436,40 €

VAT-inclusive price: 1.694,95 €

Qnt:

Invertek Optidrive P2, ODP-2-44150-3KF4N-TN , 400V 3 phase input, 400V 3 phase output, 15kW, 30A, IP55 Non-switched inverter.

TFT display.

High performance open loop vector or V/f control.

Internal EMC filter and brake transistor.
Safe Torque Off

IP55 is protection against low pressure jets of water and harmful deposits of dust.

Power (kW)	15
Power (HP)	20
Input Voltage	380-480V
Output Voltage	0-input Voltage
Input Phases	3
Output Current	30A
Input Current	37.2A
Enclosure rating	IP55
Width	171mm
Height	450mm
Depth	252mm
Frame Size	4
Overload	200%
Duty	Heavy
Dynamic Braking	Yes
Weight	11.5
Control Type	Open or closed loop vector or V/f
Input Frequency	48-62Hz
Output Frequency	0-500Hz
Max Temperature	40 ͦC
Digital Inputs	5
Digital Outputs	2
Analogue Inputs/Ps	2
Analogue Outputs/Ps	2
Output relay(s)	2
Serial Comms	Modbus, CANopen
Approvals	UL. cUL, C- Tick, Gost R, ROHS
