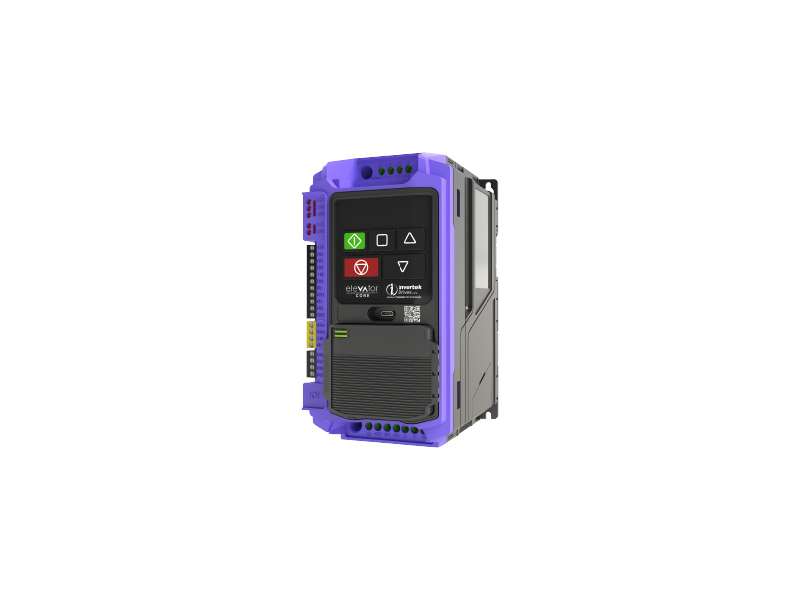

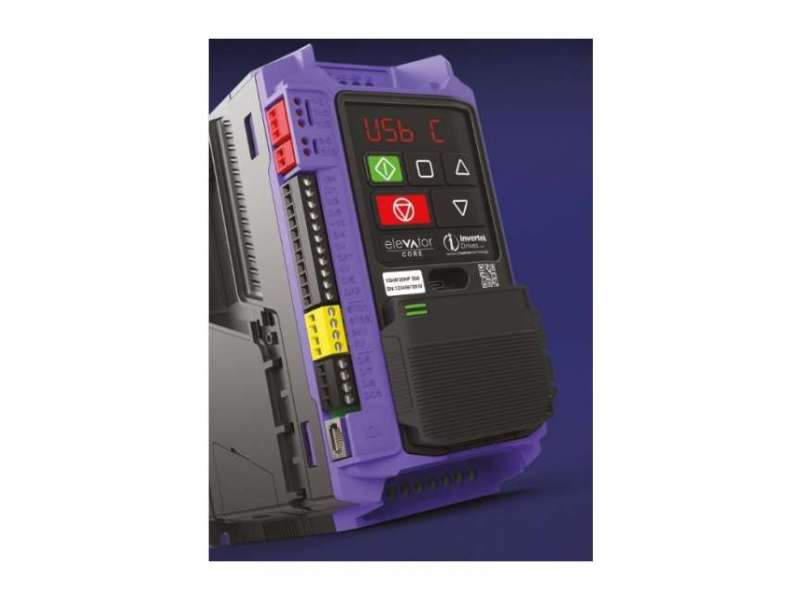

INVERTEK DRIVES Optidrive Elevator CORE 4KW, 9.5A, 440VAC trofazni ulaz; ODL-3-240095-342SB0
Optidrive Elevator CORE 4KW, 9.5A, 440VAC trofazni ulaz; ODL-3-240095-342SB0...
VAT-exclusive price: 523,32 € |
VAT-inclusive price: 617,52 € |
Optidrive Elevator CORE 4KW, 9.5A, 440VAC trofazni ulaz; ODL-3-240095-342SB0
| Power [kW] | 4 |
| Output rated current [A] | 9.5 |
| Peak current 200% [A] | 8.6 |
| Frame size | Frame 2 – H220xW110xD184 [mm] |
| IP protection | IP20 |
| Communication | CANopen / Modbus |
| Number of digital inputs | 8 |
| Number of digital outputs | 1 |
| Number of relay outputs | 2 |
| Number of digital / analog outputs | 2 |
| Safe Torque Off function | YES |
| Option |
Universal encoder module |
-
Elevator Core Quick Start Up V1.0 (1)
-
Invertek Drives ODL-3-240095-342SB0 Datasheet
