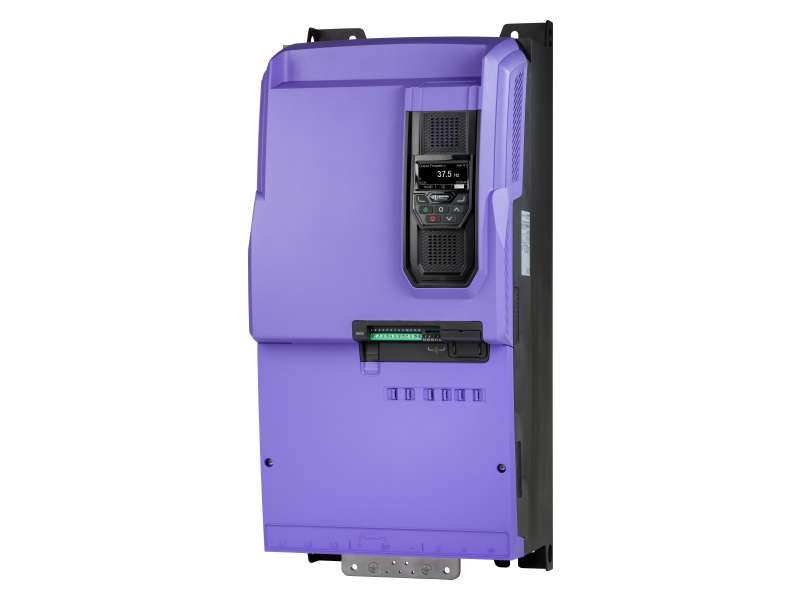

INVERTEK DRIVES Optidrive Eco, 90kw, IP20 ; ODV-3-641800-3F12-MN
Invertek Optidrive Eco, ODV-3-641800-3F12-MN , 400V 3 phase input, 400V 3 phase output, 90kW, 180A output current IP20 inverter. Dedicated centrifugal Fan &...
VAT-exclusive price: 4.664,90 € |
VAT-inclusive price: 5.504,58 € |
Invertek Optidrive Eco,ODV-3-641800-3F12-MN, 400V 3 phase input, 400V 3 phase output, 90kW, 180A output current
IP20 inverter.
Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet
IP20 inverter.
Dedicated centrifugal Fan & Pump inverter drive
Internal PID feedback loop for pressure / flow / level / temperature control.PLC functions
Internal EMC filter
Quadratic voltage / frequency output for maximum motor energy optimisation.
Communication options : Modbus, Bacnet
| Power (kW) | 90 |
| Power (HP) | 120 |
| Input Voltage | 380-480V |
| Output Voltage | 0-input Voltage |
| Input Phases | 3 |
| Output Current | 180A |
| Input Current | 183.7A |
| Enclosure rating | IP20 |
| Width | 330mm |
| Height | 726mm |
| Depth | 320mm |
| Frame Size | 6B |
| Overload | 110% |
| Duty | Heavy |
| Dynamic Braking | No |
| Weight | 43kg |
| Control Type | ECO Vector |
| Input Frequency | 48-62Hz |
| Output Frequency | 0-500Hz |
| Max Temperature | 40 ͦC |
| Digital Inputs | 5 |
| Digital Outputs | 2 |
| Analogue Inputs/Ps | 2 |
| Analogue Outputs/Ps | 2 |
| Output relay(s) | 2 |
| Serial Comms | Modbus, Bacnet |
| Approvals | UL. cUL, C- Tick, Gost R, ROHS |
-
GB Optidrive ECO User Guide
