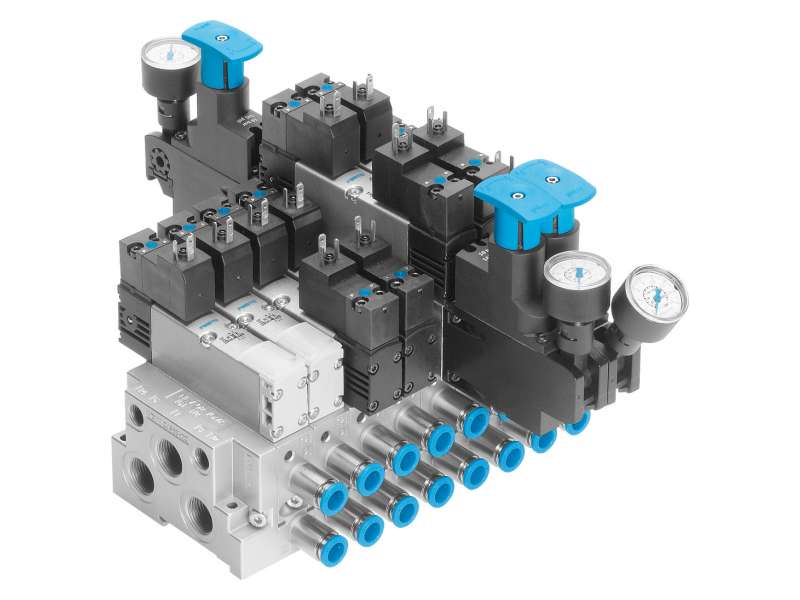

Festo Manifold assembly VTIA ; 546835
Valve manifold assembly to ISO 15407-1 with standardized electric connection arrangement and individual pressure control. A further plus: flow control by vertical...
Out of stock
Valve manifold assembly to ISO 15407-1 with standardized electric connection arrangement and individual pressure control. A further plus: flow control by vertical stacking and options for reverse and vacuum operation.
- Conforms to ISO 15407-1
- Wide range of individual electrical connections
- Two valve sizes can be combined
- Standardized electrical connection: type C square plug or individual connection with M8/M12 central plug
- Valve function
-
5/3, closed
5/2, bistable
2x3/2, closed, monostable
5/2, monostable
2x3/2, open, monostable
5/3, pressurized
2x3/2, open/closed, monostable
5/3, exhausted
5/2, bistable, dominant - Valve size
-
18 mm
26 mm - Max. standard nominal flow rate
-
1100 l/min at 26 mm
550 l/min at 18 mm - Pneumatic working port
-
QS-12
G1/4
G3/8
QS-10
G1/8
QS-16
G1/2
QS-8 - Operating pressure
- -0.9 bar ... 16 bar
- Electrical actuation
- Individual connection
- Max. no. of valve positions
- 16
- Max. no. of pressure zones
- 3
- Ambient temperature
- -5 °C ... 50 °C
- Width
-
18 mm
26 mm - Degree of protection
-
IP65
NEMA 4 - Type code
- VTIA
- Exhaust air function
- Via throttle plate
- Actuation type
- Electrical
- Valve terminal type
- 16
- Design
- Piston gate valve
- Valve manifold design
- Modular, pneumatic valve sizes can be mixed
- Pilot pressure
- 3 bar ... 10 bar
- Suitability for vacuum
- yes
- Permissible voltage fluctuations
- -15 % / +10 %
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Storage temperature
- -20 °C ... 60 °C
- Temperature of medium
- -5 °C ... 50 °C
- Relative air humidity
- 0 - 90 %
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Note on materials
- RoHS-compliant
- Seals material
-
HNBR
NBR
-
546835datasheet
